Three Phase Thyristor Power Controllers
DIGITAL Three Phase Thyristor Power Controllers
FLAIR CPC- 600 SERIES TECH.SPECIFICATIONS
FLAIR CPC-600 Digital Thyristor Controller has been developed with the advent of SMART technology of digitization.
In the FLAIR series CPC 600-1 & CPC 600-2 models are available
- Phase Angle Control - CPC 600-1.
- Combination- CPC 600-2-It works either on Phase Angle or Zero Crossover which is selectable.
- RS 485 MODBUS Communication available for Models CPC 600-1 RS & CPC 600-2 RS .
- Phase to Phase Current Unbalance Detection Facility is available for Model CPC 600-2 C.
Tech Specifications of CPC 600-1 & CPC 600-2
- Rating-12 Amps-600 Amps,380-440 VAC & 47-60 Hz frequency.
- Operative Temp- 45 degree centigrade.
- Mounting- Inside panel wall mounting.
- Cooling-In built forced fan cooling.
- Environment Required- Normal dry.
- Power Connection- Copper plated Busbar.
- Control Terminals-Suitable for 0.5-1.5 sq.mm (Phoenix Male & Female type connector)
- Auxiliary Supply-Either 230 V or 110 V AC. (To be confirmed during ordering)
- EMC Test Approved by TUV NORD.
- Current Limit & Over Current Trip Facilities are available.
- 6 Leg Control.
FLAIR CPC-600 -2 COMBINATION
COMBINATION FIRING CONTROL:CPC has developed a combination Thyristor Controller. Which works with both Burst Firing control and Phase Angle Control with external potential free NO contact.
Advantages
- In Time Cycle control power factor is always unity so power saving is appreciable when it is running on state board electrical supply, However, it draws more power when it operates on DG set.
- Phase Angle control draw comparatively less power on DG set. So when DG set is switched on, with external potential free contact, Thyristor controller can operate on phase angle mode.
- Built in Soft Starter facility is available.
- Inbuilt Semiconductor fuse.
- Over current trip & current limiting facility is available.
- User-friendly interference digital display for parameter setting & status checking.
- Energy saving features.
Digital Thyristor Power Controller-Three Phase FLAIR CPC-600-3
Features of FLAIR CPC-600-3 Thyristor Power Regulator
- Signal input 4-20 mA or 0-10 VDC Selectable.
- Mode of operation is Combination. It can work either Phase Angle mode or Zero Cross Over (Time Cycle) on site slection .
- LCD Screen for status display & additional LED Indicator for easy & quick understanding.
- Built-in semiconductor fuses.
- Adjustable Over Current trip POT facility is available.
- Adjustable for Current Limit facility POT is available.
- 6 Leg control.
- Soft start facility is avialble.
Three Phase Thyristor Power Controllers for HVAC Application
THYRISTOR POWER CONTROLLER
3TP-3TD-S12 Zero Cross over model
FEATURES
- Best suitable when VFD is integrated in the control panel alongside Thyrister Controller.
- Compact Design.
- Built-in semiconductor fuses.
- Over Current limit adjustable.
- Energy-saving features.
- 6 Leg Control.
- Load Connection- Delta or Star with Neutral OR without Neutral.
- Harmonics Study test.
- Generation of RFI is almost zero.

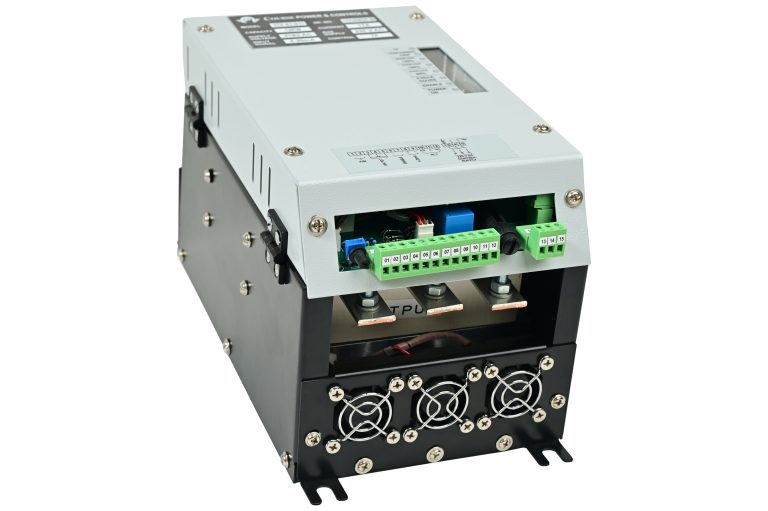

THYRISTOR POWER CONTROLLER 3TP-6T-S11 Zero Cross over model
FEATURES
- Compact Design.
- Built-in semiconductor fuses.
- Over Current limit adjustable.
- Energy-saving features.
- 6 Leg Control.
- Load Connection- Delta or Star with Neutral OR without Neutral.
- Harmonics Study test.
- Generation of RFI is almost zero.
