Single Phase & Two-Phase Thyristor Power Controllers

Digital Thyristor Power Controller 1 Phase FLAIR CPC 200-1 PHASE ANGLE CONTROL

Features & Specifications of Single-Phase or Two-Phase FLAIR CPC 200-1 Digital Thyristor controller.

Mode of firing is Phase Angle Control
Best suitable for resistive & transformer Load
LCD display & LED Indications are available for running status of thyristor controller
Inbuilt Semiconductor fuses are available.
Input signal is 4-20mA / 0-10V DC (Site Selectable).
Control supply will be 230V AC / 100V AC.
Current Limit (CL) feature available & it can be adjusted by POT.
Over Current (OL) Trip feature is available & it can be adjusted by POT.
Auto / Manual Facility is Available
Enable terminals Available
Heaters can be connected in Phase and Neutral OR Phase to Phase
2 Nos of Relays are available-one for Over Current Trip available & another for RUN
It can be available for 10A to 100A load & even more load.
Mounting is Back panel type with forced air cooling
Overall dimensions in mm are 175W X 210H X 135D For UPTO 8KW load.

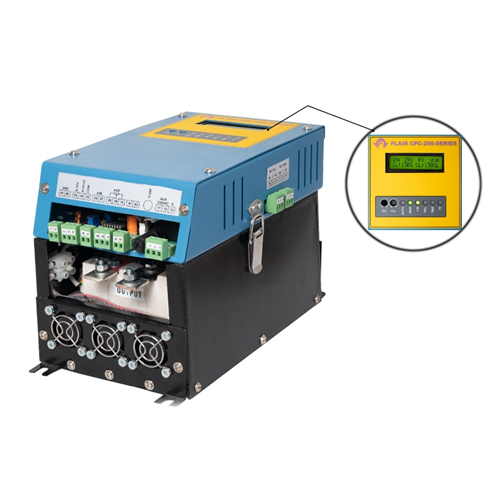

Features & Specifications of Single-Phase FLAIR CPC 200-2 Thyristor controller.

Mode of firing is either Phase Angle Control or Zero crossover which can be selected
Best suitable for resistive load
LCD display & LED Indications are available for running status of thyristor control
Inbuilt Semiconductor fuses are available.
Input signal is 4-20mA / 0-10V DC (Site Selectable).
Control supply will be 230V AC / 100V AC.
Current Limit (CL) feature available & it can be adjusted by POT.
Over Current (OL) Trip feature is available & it can be adjusted by POT.
Auto / Manual Facility is Available
Enable terminals Available
Heaters can be connected in Phase and Neutral OR Phase to Phase
2 Nos of Relays are available-one for Over Current Trip available & another for RUN
It can be available for 10A to 500A load & even more load.
Mounting is Back panel type with forced air cooling

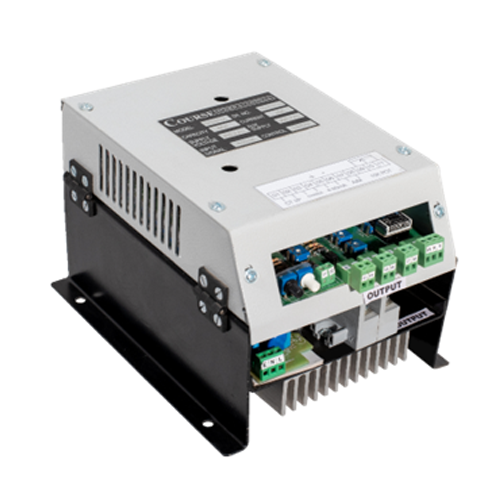

Features & Specifications of Single-Phase OR Two Phase 1PH-2T-S1 Thyristor controller.

Mode of firing is Phase Angle Control.
Best suitable for resistive & transformer Load.
Input signal is 4-20mA / 0-10V DC (Site Selectable).
Control supply will be 230V AC / 100V AC.
Supply Voltage 230V AC, 1 Phase, 50Hz +/- 6%
NO Enable Digital Input available.
Adjustable Current Limit (CL) feature available.
Adjustable Over Current (OL) Trip feature is available.
Auto / Manual Facility is Available
Heaters can be connected in Phase and Neutral, OR Phase to Phase
2 Nos of Relays are available-one for Over Current Trip available & another for RUN
Mounting is a Back panel type with Natural air cooling
External Semiconductor fuses need to be provided.
Overall dimensions in mm are 150W X 200H X 135D For UPTO 6KW load.
